Flat Bed Die Cutter
Sts 1050-Sef Die Cutting And Hot Foil Stamping Machine, Year 2008
U48151125
Connected
EUROPE ·
2008
The price only available for registered users
Description

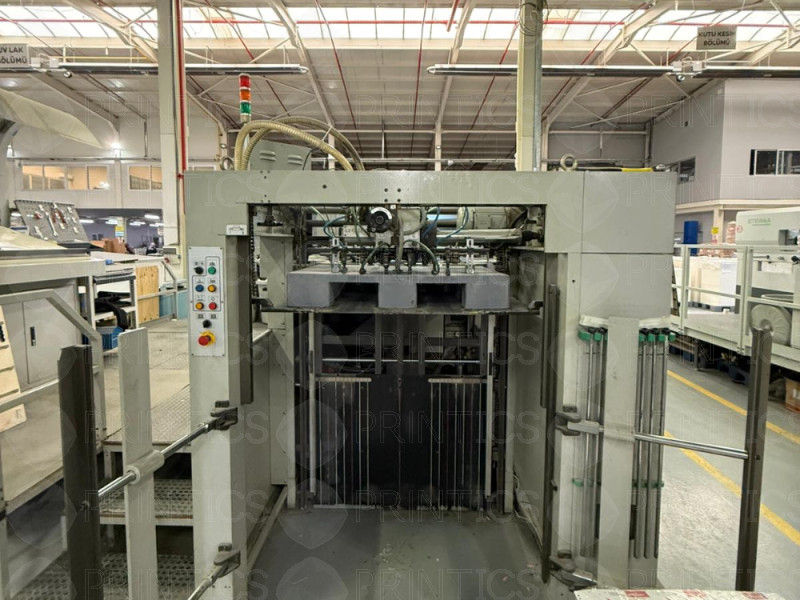

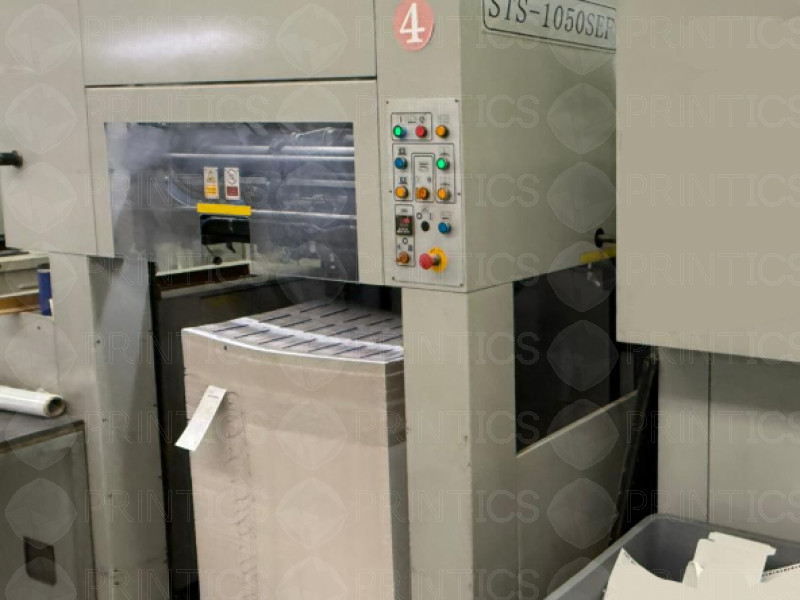

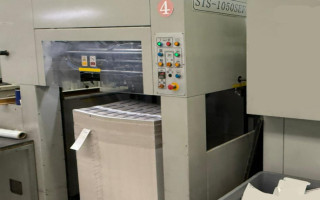

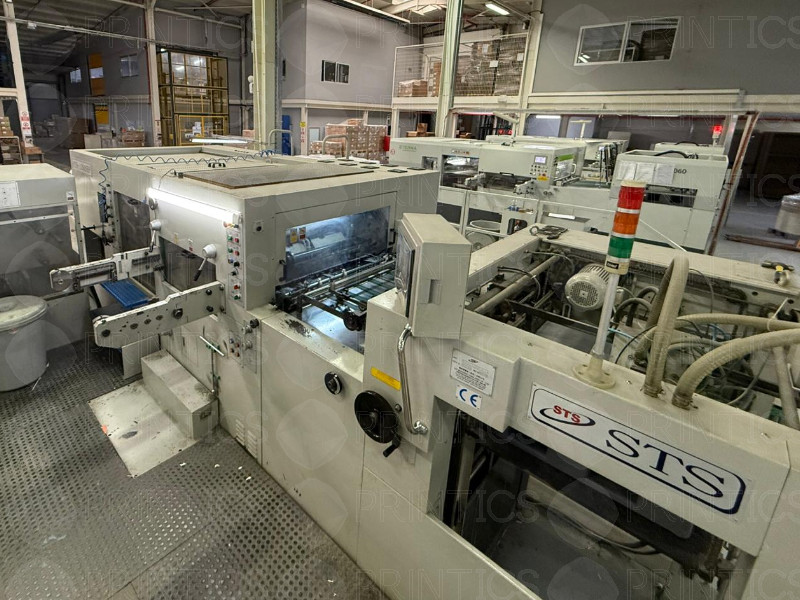

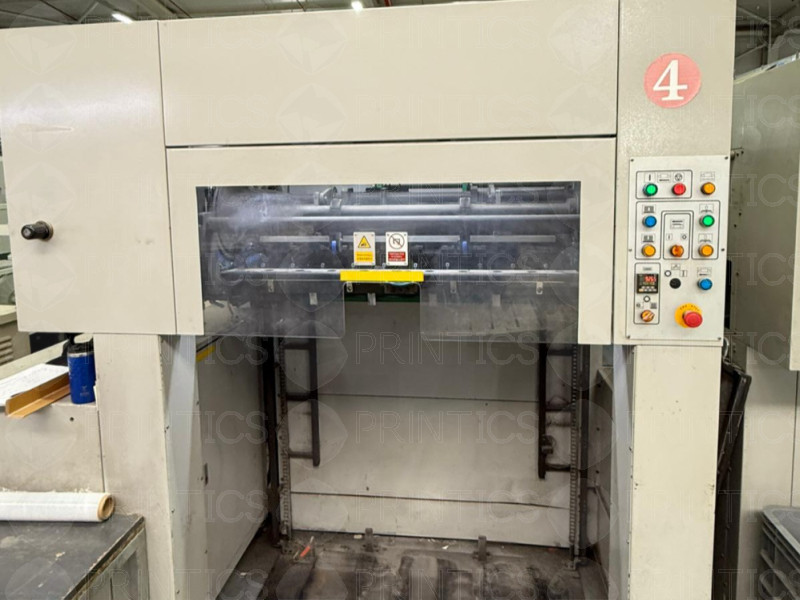

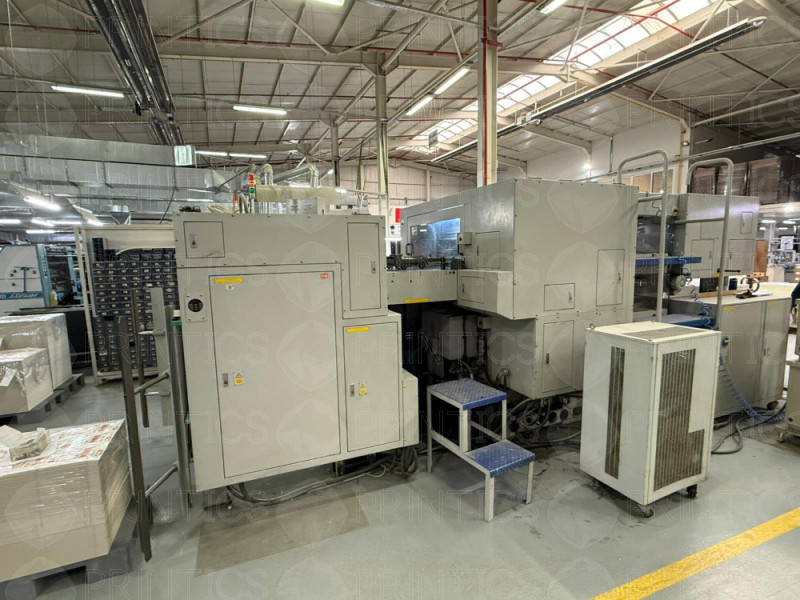

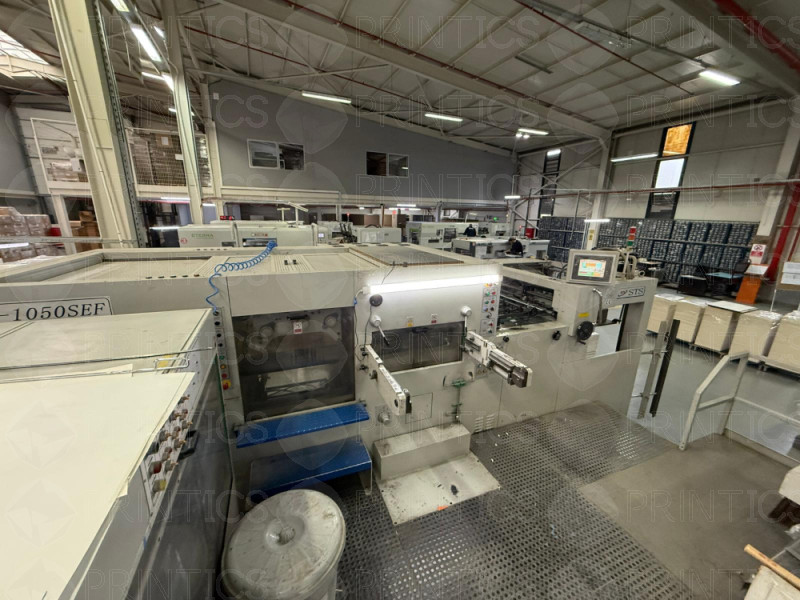

We present this STS 1050-SEF DIE CUTTING AND HOT FOIL STAMPING MACHINE, max. format 750mm x 1050mm / 29.5” x 41.3”, manufactured in 2008.
The machine is in VERY GOOD CONDITION, connected and available immediately.
Machine details:
- Suction Cup Feeder
- Hot Foil Stamping / Die Cutting Section
- Delivery Section
- Materials:
- paper: min. 80/90 GSM
- solid board: max. 600 GSM
- corrugated board up to 4mm
Stamping Mode:
- Maximum foil and stamping size : 710mm x 1020mm / 27.9” x 40.2”
- Max. mechanical speed : 6500 s/h
- Heated zones : 12
Die Cutting Mode:
- Max. die cutting format: 730mm x 1040mm / 28.3” x 40.9”
- Cutting force: 300T
- Max. efficiency: 7.500 sheets/hour
- Machinery weight aprox: 16.5 T
Technical data
| Printics reference | U48151125 |
|---|---|
| Format | 750 mm x 1050 mm |
| Type | FLAT BED DIE CUTTER |
| Manufacturer | STS MACHINERY |
| Model | 1050-SEF |
| Year | 2008 |
| Continent | EUROPE |
