Equipo Para La Fabricación De Bolsas De Papel
Windmöller & Hölscher Bottomer, Together With Transystems T2 And Arcomat 2 Paper Bag Making Line
U50291026
EUROPA ·
1995
Descripción

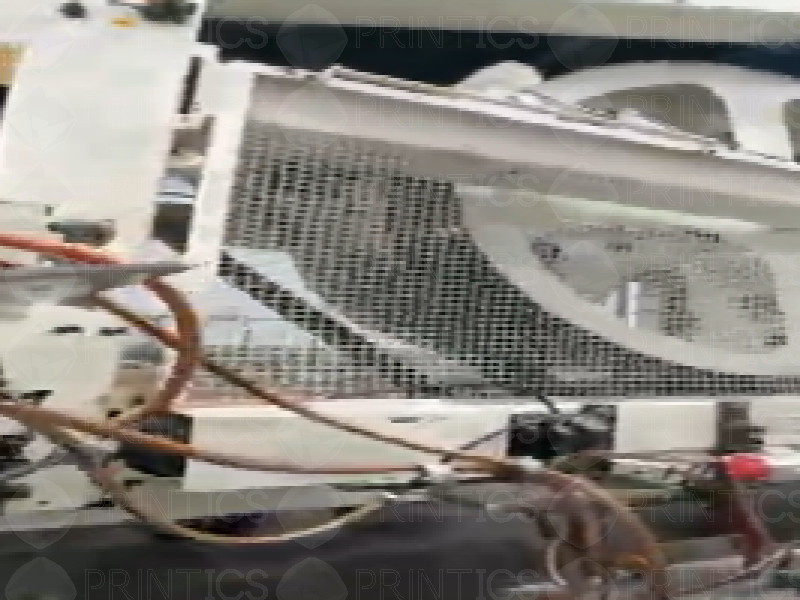

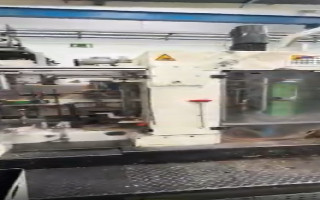

We present this WINDMÖLLER & HÖLSCHER BOTTOMER, TOGETHER WITH TRANSYSTEMS T2 AND ARCOMAT 2 PAPER BAG MAKING LINE.
The equipment is in production, can be inspected at any time, and will be available in August 2027.

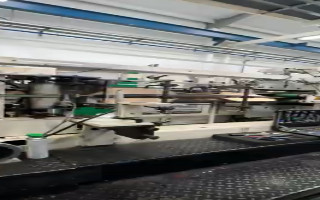

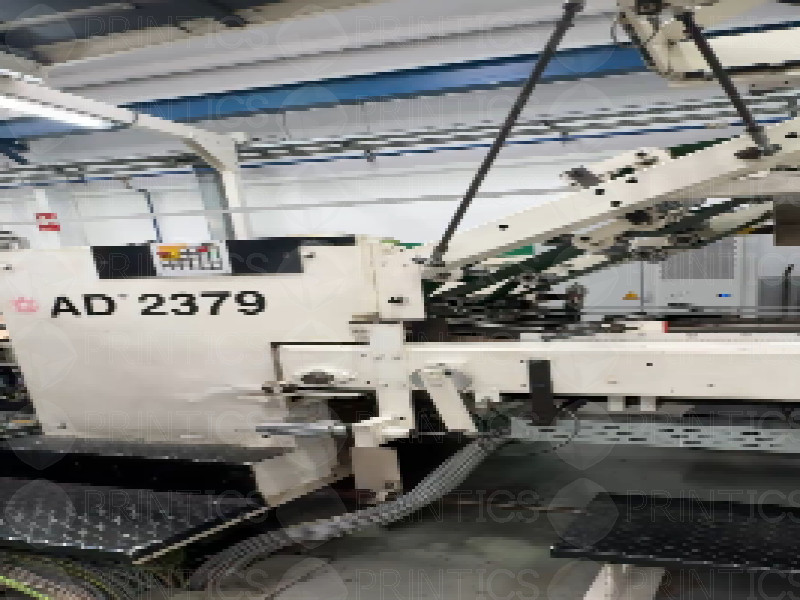

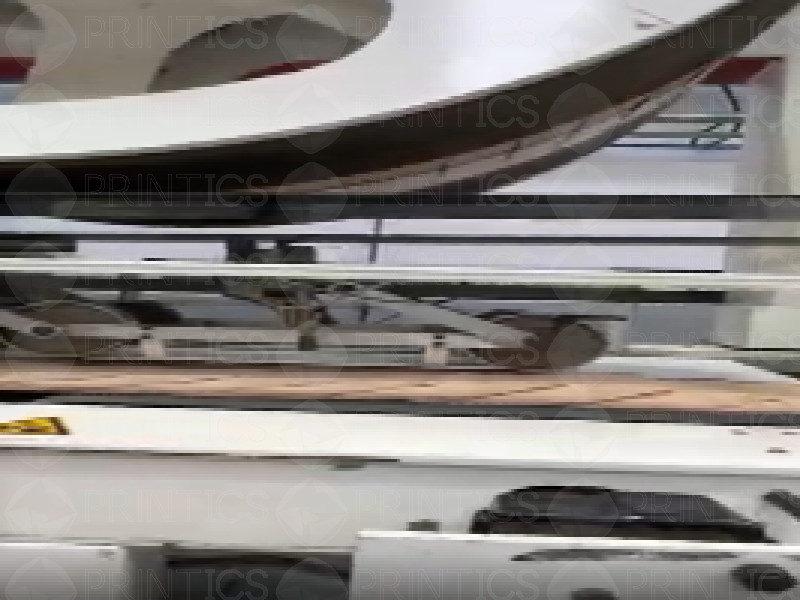

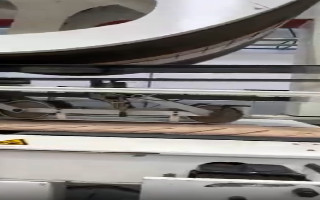

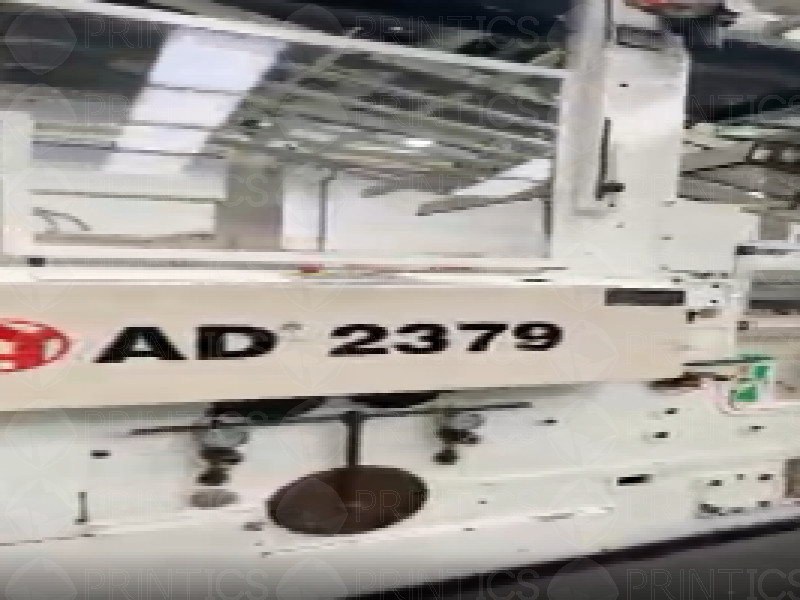

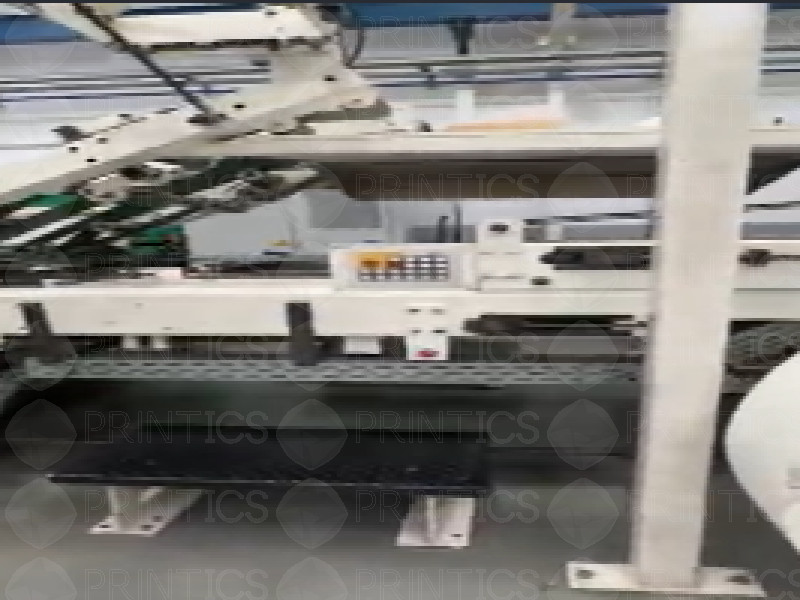

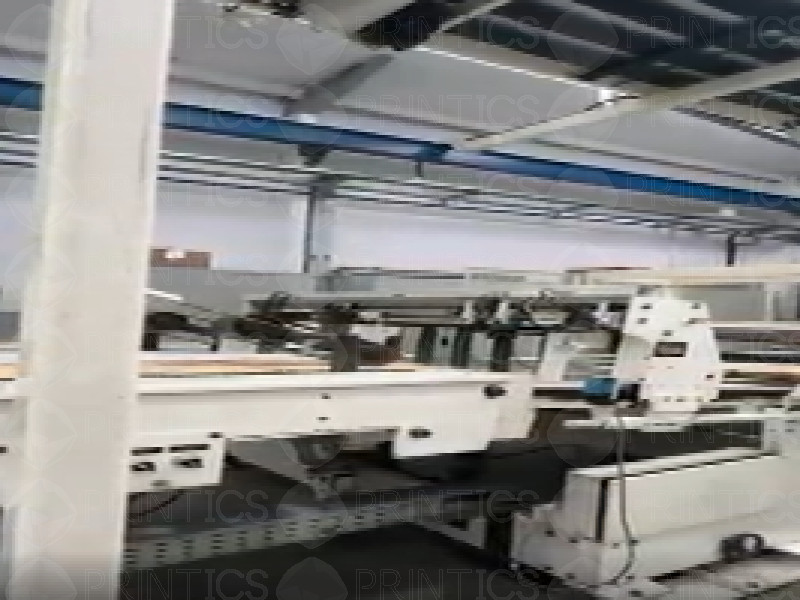

WINDMÖLLER & HÖLSCHER BOTTOMER - 1995
Complete electrical retrofit in 2021
Technical Specifications:
- Bag length:
- Stepped-cut bags: 290 –1290 mm
- Straight-cut bags: 310 –1310 mm
- Bottom width:
- Stepped-cut bags: 75–230 mm
- Straight-cut bags: 75–230 mm
- Bag width: 200 –700 mm
- Distance between bottom centres: 220 – 1200 mm
- Valve 1 and Valve 2:
- Paper length: 80 –290 mm
- Reel width: 100 – 460 mm
- Internal bottom closure:
- Paper length: 150 –580 mm
- Reel width: 70 – 380 mm
- Bottom covering sheet:
- Paper length: 150 – 580 mm
- Reel width: 60 –250 mm
Main Equipment:
- Rotary feeder with vacuum pump
- Infeed table
- Bottom scoring station
- Bottom-opening station with vacuum pumps
- Automatic square-bottom dimension inspection system, with rejection at the end of the line
- Valve 1
- Valve 2 with flap and PE cutting unit
- Internal bottom-closing unit on both sides of the machine
- Bottom creasing unit
- Bottom gluing unit
- Bottom-closing unit
- Reinforcing strip application device on both sides
- Two-colour printing unit on each side
- Two-drum conveyor belt
- Bundle forming unit

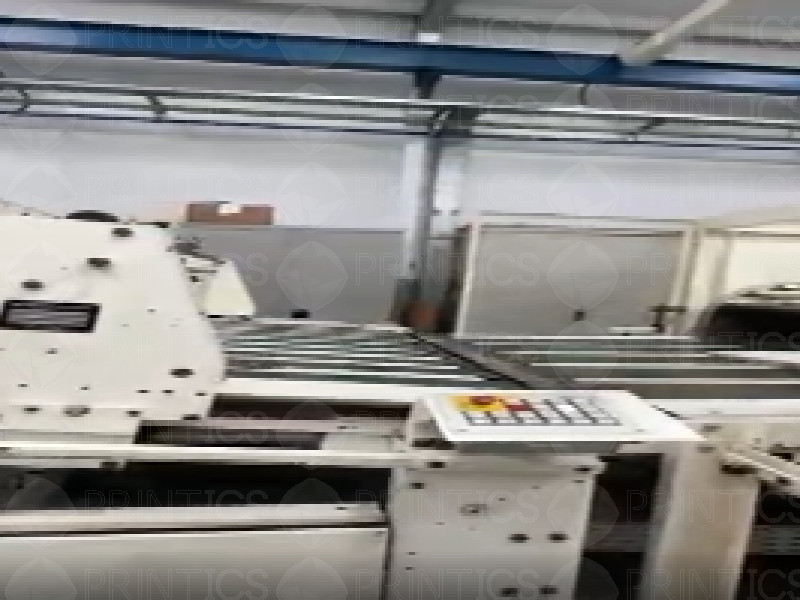

WINDMÖLLER & HÖLSCHER TRANSYSTEMS T2 – 2000
Complete electrical retrofit in 2015
Main Equipment
- Transport table
- Bag turner
- Transport table
- Corner transfer station
- Transport table
- Transport table
- Corner transfer station
- Roller table
- Bag elevator feeding the Arcomat

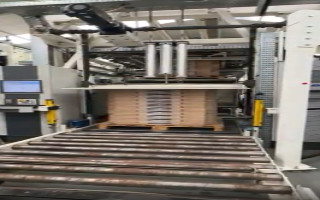

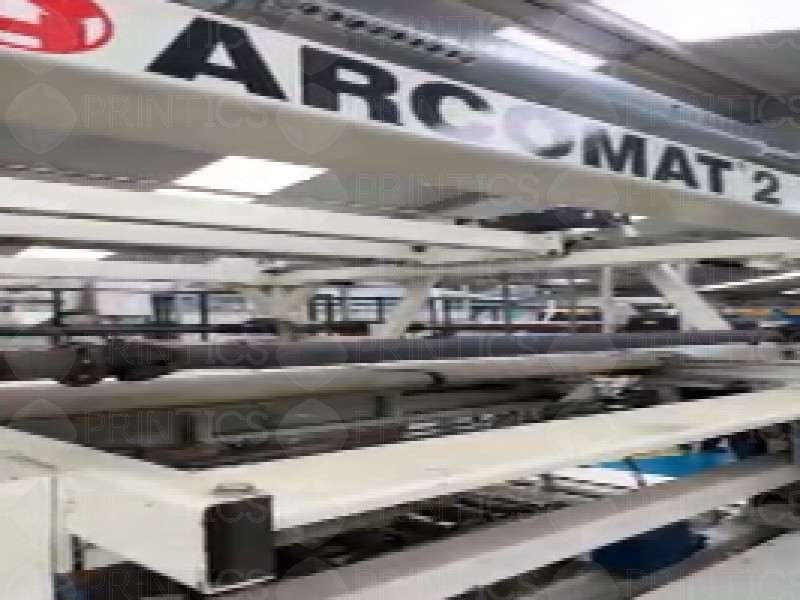

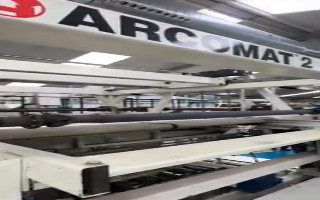

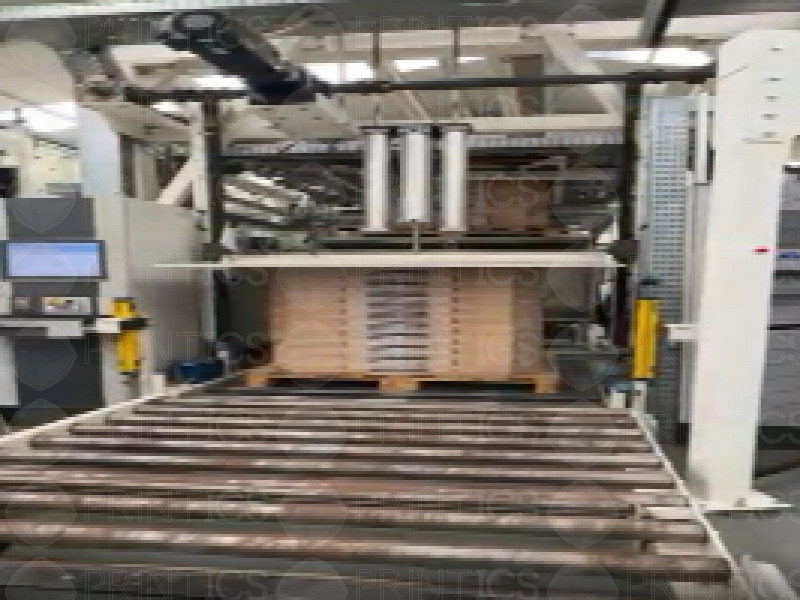

WINDMÖLLER & HÖLSCHER ARCOMAT 2 – 2000
Complete electrical retrofit in 2021
Technical Specifications
- Bag length: 290 –1400 mm
- Bag width: 220 –750 mm
- Pallet size:
- Minimum: 600 × 750 mm
- Maximum: 1500 × 1600 mm
- Main Equipment
- Five bundle accumulation stations
- Bundle centring unit
- Gripper
- Pallet lifting table
- Pallet layer alignment plates
- Empty pallet station with automatic loading onto the palletising table
- Empty pallet pressing unit after pallet completion
- Single-pallet waiting station
Detalles técnicos
| Referencia a Printics | U50291026 |
|---|---|
| Formato | 1290 mm x 23 mm |
| Tipo | EQUIPO PARA LA FABRICACIÓN DE BOLSAS DE PAPEL |
| Fabricante | WINDMÖLLER & HÖLSCHER |
| Modelo | X |
| Año | 1995 |
| Continente | EUROPA |
