Kongsberg C44 Plotter, Year 2022
U49130326
En producción
Novedad
EUROPA ·
2022
Precio solo disponible para usuarios registrados
Descripción

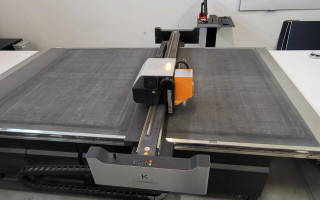

We present this KONGSBERG C44 PLOTTER, max. format 2210mm x 3200mm / 87” x 126”, manufactured in 2022.
The machine is in excellent condition, in production and available immediately.
Machine details:
- Digital Finishing Table with Control Station and Computer
- i-cut Production Console Control Software and i-camera Register System
- MultiZone Panel C24, C44, C64 and C66 enabling two zones work
- Suction 7.5kW Pump with Kongsberg Sound Insulating Box V2
- Designed for continuous operation 24h/7
- Max. working area: 2210mm x 3200mm / 87" x 126"
- Materials: corrugated board from single to triple wall, display cardboard and solidboard, rigid materials such as foamed PVC, cellular polypropylene, and many others
- Max. speed: 100 m/min
Tool configuration:
- HDU (Heavy-Duty Unit) - creasing unit with 150mm and 26mm diameter wheels
- VibraCut-C Tool Package - oscillating tool for cutting corrugated board and other materials
- CorruSpeed Knife Tool-C - static tool for cutting corrugated board without oscillation
- Psaligraphy Knife Tool-C - cardboard cutting tool
- Tool Insert Fixture for plotting and drill tool inserts - holder for mounting a writing tool
- Ballpoint Pen Tool Insert - writing tool
Additionally, the software Automation Engine & ArtiosCAD can be sold at attractive prices.
Detalles técnicos
| Referencia a Printics | U49130326 |
|---|---|
| Formato | 2210 mm x 3200 mm |
| Tipo | PLOTTER |
| Fabricante | KONGSBERG |
| Modelo | C64 |
| Año | 2022 |
| Continente | EUROPA |
