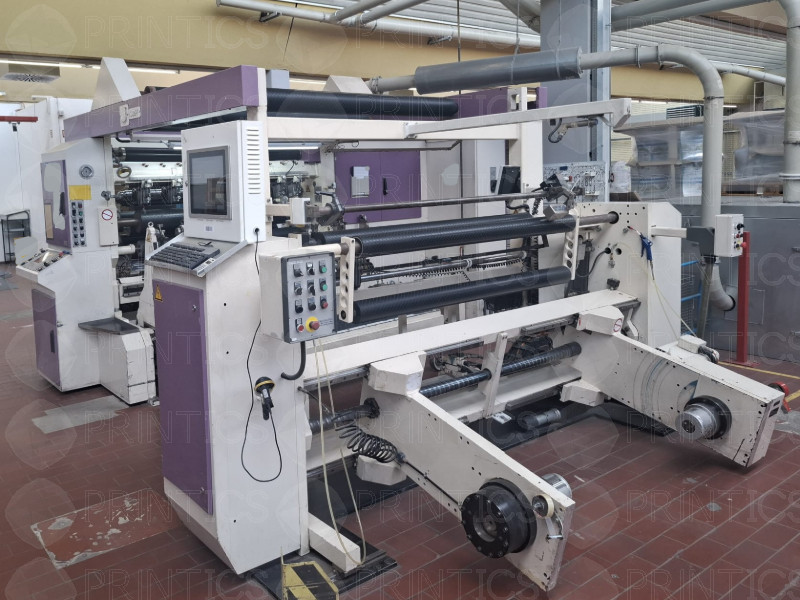

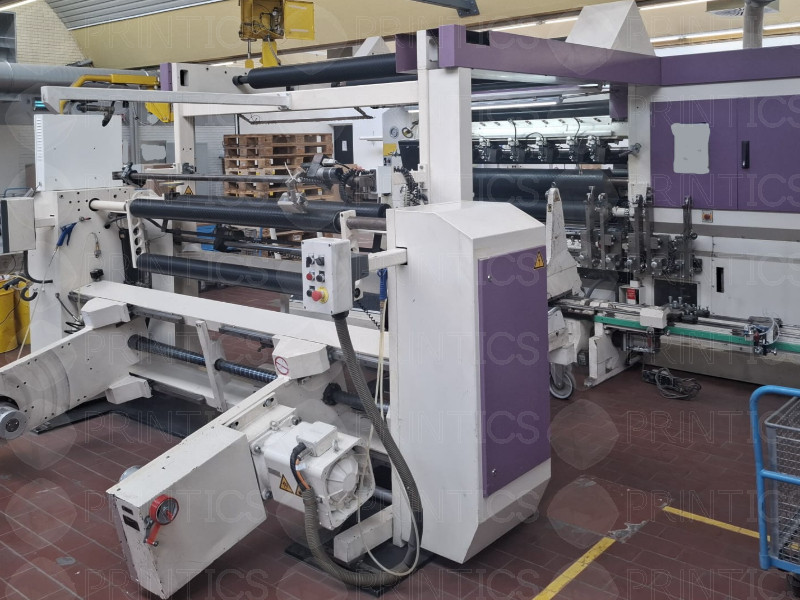

Kampf Unislit 616 Rollcutter / Rewinder

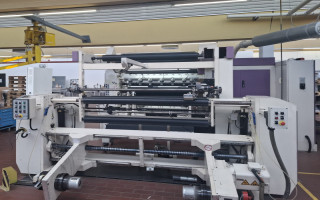

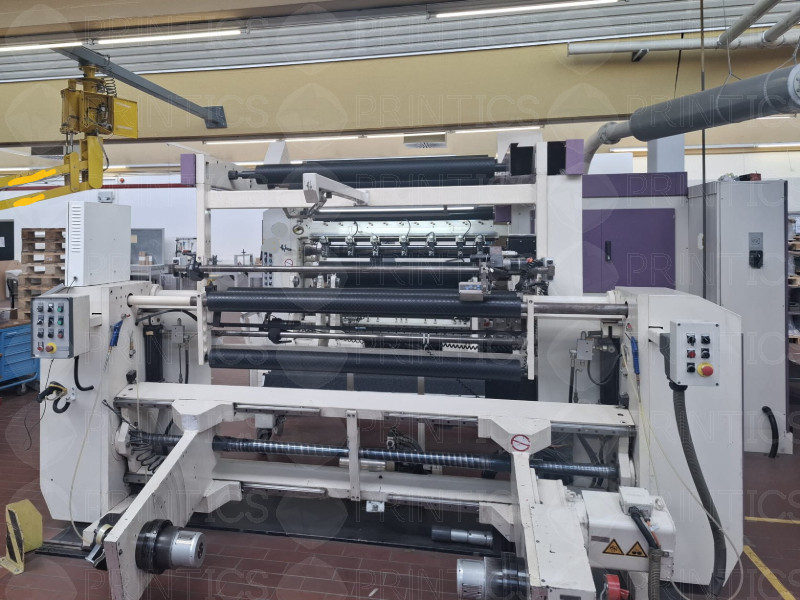

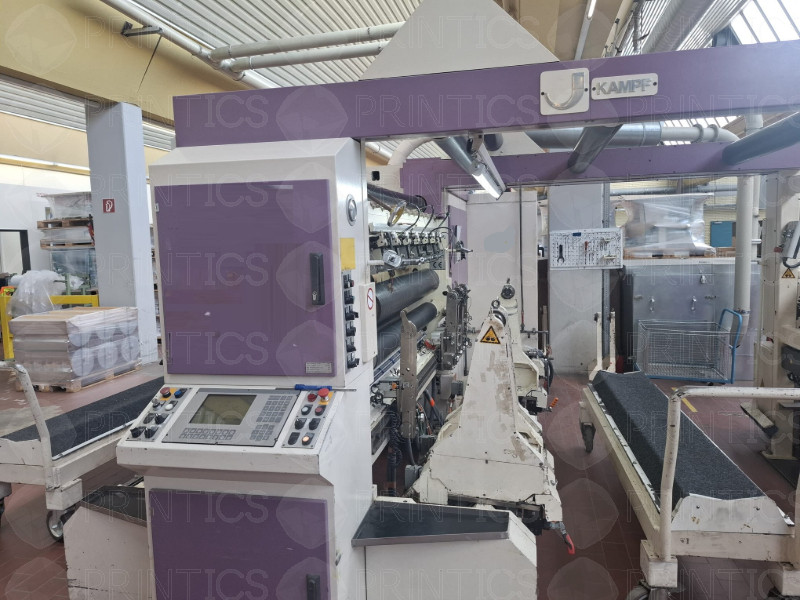

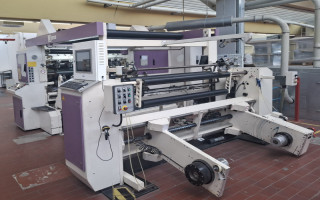

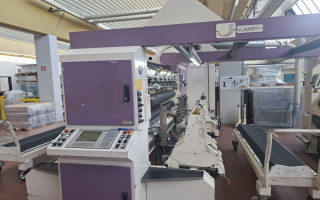

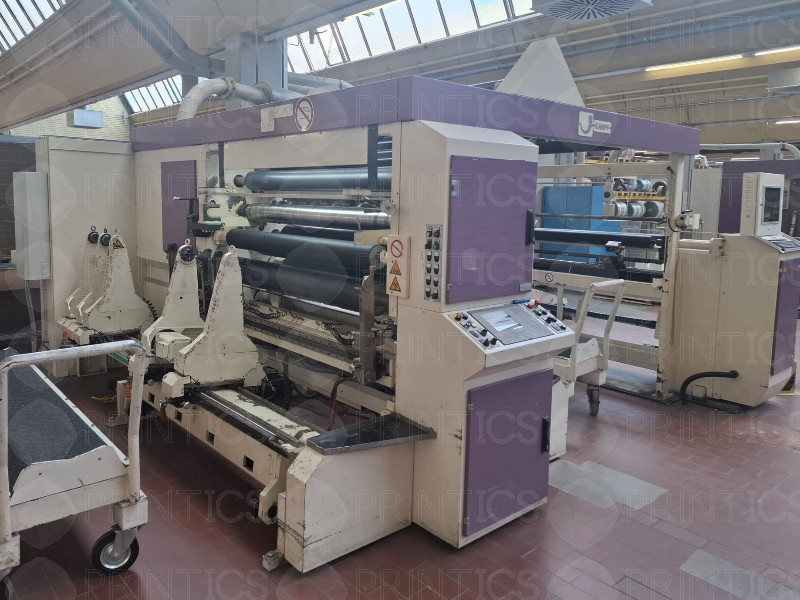

We present this KAMPF UNISLIT 616 Rollcutter, max. roll width 1650mm / 65", manufactured in 1997.

The machine can be inspected with test production and is immediately available.

Machinery Details:

Unwinding:

• Max. roll diameter: 1,000 mm
• Max. roll width: 1,650 mm
• Min. roll width: 600 mm (below 600 mm only possible with auxiliary shaft)
• Max. roll weight: 2,000 kg
• Core diameters: 76 mm and 152 mm

Material Thicknesses:

• Monofilms: 20–170 µm (below 40 µm not recommended)
• Laminates: 40–190 g/m² (below 40 µm not recommended)
• Various composites, duplex, triplex, and quadro laminates: up to max. 200 g/m²

Slitting Unit:

• Shear cut with lower and upper knives
• Slit width: min. 190 mm, max. 1,200 mm

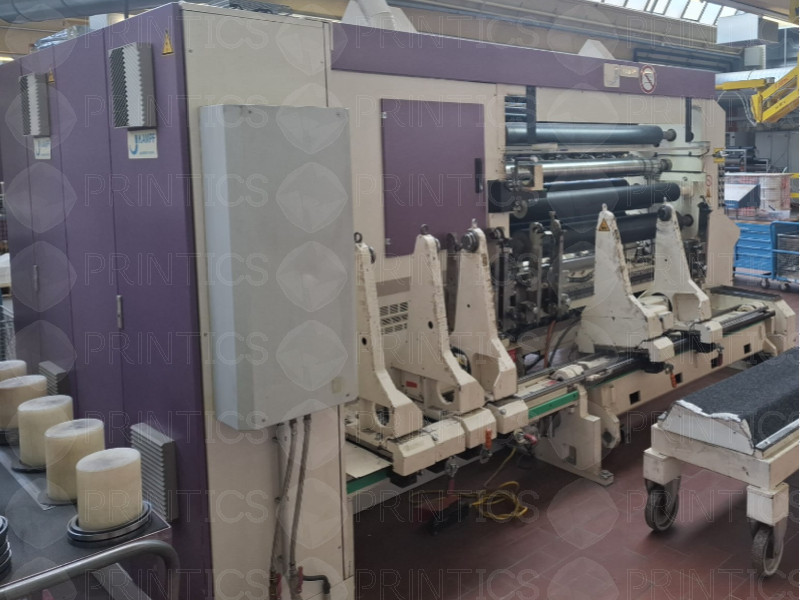

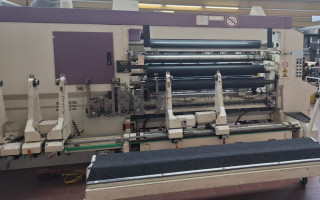

Rewinder:

• Contact rewinder with individual lay-on rollers
• Number of winding stations: 6
• Number of winding stations for slit widths from 600 mm: 2

Winding Cores:

• Inner diameter: 70 mm, 76 mm, and 152 mm
• Outer diameter: min. 84 mm, 92 mm

Edge Trim Extraction:

• Max. width: 30 mm per side
• Max. weight: 200 g/m²

Additional Equipment on the Machine:

• Spreader roller
• Material infeed device
• Edge trim extraction system
• Ionization system at unwinder and rewinder
• Adjustable guide rollers at the unwinder

Mechanical machinery speed: max. 600 m/min
