Flat Bed Die Cutter

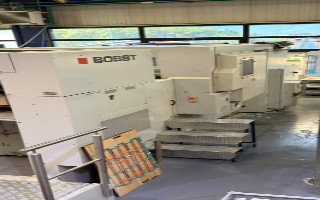

Bobst Visioncut 106 Le Automatic Flat Bed Die Cutter
U49860826
In production
News
EUROPE ·
2014
The price only available for registered users
Description
We present BOBST VISIONCUT 106 LE AUTOMATIC FLAT BED DIE CUTTER, max. format 750 mm x 1060 mm / 29.5" x 41.7", manufactured in 2014.
The machine is in VERY GOOD CONDITION, in production, can be inspected at any time and available in November 2026.
Machinery Details:
- Maximum sheet size: 760 × 1060mm / 23.34" x 40.15"
- Minimum sheet size: 350 × 400mm / 13.77" x 15.74"
- Materials:
- Paper min. 70 g/m²
- Carton or solid board up to 2,000 g/m²
- Corrugated board up to 4 mm
- machine without pit
- special version: 9,000 sheets/hour
- chase loader
- machine raised by 640 mm.
- podium
- podium extension
- bernoulli ejection system
- automatic cycle cells
- heavy-board + microflute package
- automatic stack correction
- motorized vertical head adjustment
- motorized vertical suction cup adjustment
- layer correction
- head accessory
- printed mark reading accessory
- non-contact sheet detector
- upper control panel for lifting device
- adjustable lower plate centring
- motorized die-cutting pressure adjustment
- 4 mm. compensation plate
- automatic gripper bar opening system
- quick-change upper die-cutting chase
- lower ejection control panel
Technical data
| Printics reference | U49860826 |
|---|---|
| Format | 760 mm x 1060 mm |
| Type | FLAT BED DIE CUTTER |
| Manufacturer | BOBST |
| Model | VISIONCUT |
| Year | 2014 |
| Continent | EUROPE |
